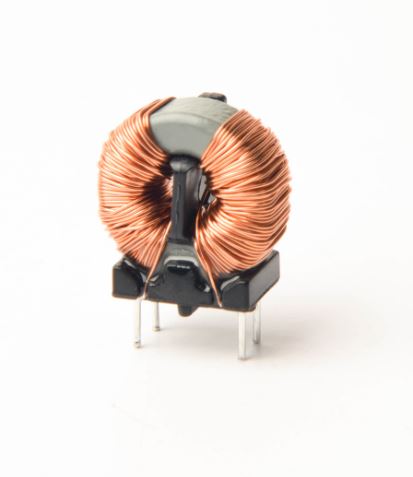

Common Mode Coil - LINE FILTER
13Φ SERIES
13Φ Line Filter series are compact in size and large Inductance and have excellent electromagnetic noise suppression properties.
Part No. | Rated current(A) | Inductance(mH) | DC R(mΩ) | Rated Voltage(V) | |||||||||||||||||||||||||||||||||
C□304500S□□ | 0.4 | 50.0 | 963 | 300 | |||||||||||||||||||||||||||||||||
C□305400S□□ | 0.5 | 40.0 | 838 | 300 | |||||||||||||||||||||||||||||||||
C□309280S□□ | 0.9 | 28.0 | 477 | 300 | |||||||||||||||||||||||||||||||||
C□312200S□□ | 1.2 | 20.0 | 279 | 300 | |||||||||||||||||||||||||||||||||
C□315150S□□ | 1.5 | 15.0 | 266 | 300 | |||||||||||||||||||||||||||||||||
C□318120S□□ | 1.8 | 12.0 | 156 | 300 | |||||||||||||||||||||||||||||||||
C□320070S□□ | 2.0 | 7.0 | 141 | 300 | |||||||||||||||||||||||||||||||||
C□355005S□□ | 5.5 | 0.50 | 19 | 300 | |||||||||||||||||||||||||||||||||
C□36045US□□ | 6.0 | 0.45 | 19 | 300 | |||||||||||||||||||||||||||||||||
For safety and the proper usage, you are requested to approve our product specification
This contents subject to change without advance notice. Please check with our sales or R&D before ordering.
