FLSB-2DR015MB

FLSB-2DR015MB Limited is a manufacturer of high performance EMC/EMP filters and Capacitor solutions for supply to the defence,ICT, - Metalized polypropylene film capacitors - Nickel plated brass case and the brass terminals - ROHS compliant







- power line filter for 110V/220Vac
 - information security system
 - power supplies
 - computer servers
 - ups power supplies
 - shield room
 - medical equipment









Rated Voltage

AC 250V

Rated Current

30A / 50℃

Withstand Voltage

2500Vdc / 10sec

Capacitance

0.015㎌ ± 20%

Operating Temperature Range

-45℃ ~ +85℃

Insulation Resistance(500Vdc/60sec)

more than 5000MΩ

Flammability Corresponding to

UL-94V-0

Leakage Current

1.41mA

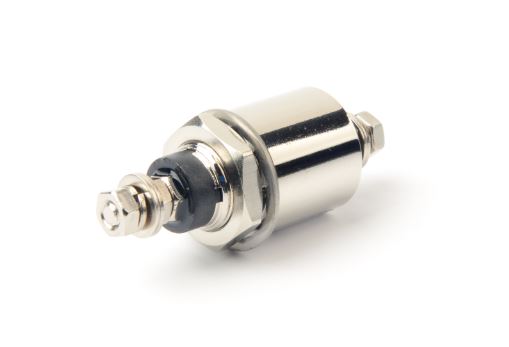

[Fig.FLS series]
