HOME > 제품정보 >

FLSC-1UR047MB

FLSC-1UR047MB Limited is a manufacturer of high performance EMC/EMP filters and Capacitor solutions for supply to the defence,ICT, - Metalized polypropylene film capacitors - Nickel plated brass case and the brass terminals - ROHS compliant







- power line filter for 110V/220Vac
- information security system
- power supplies
- computer servers
- ups power supplies
- shield room
- medical equipment









Rated Voltage

DC 1000V

Rated Current

80A / 50℃

Withstand Voltage

2500Vdc / 10sec

Capacitance

0.047㎌ ± 20%

Operating Temperature Range

-45℃ ~ +85℃

Insulation Resistance(500Vdc/60sec)

more than 5000MΩ

Flammability Corresponding to

UL-94V-0

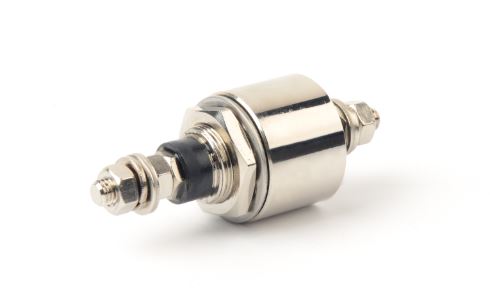

[Fig.FLS series]
